Designed to Connect Directly Into the Existing Wiring in the Vehicle with Ease!

Steering Wheel Control Interface (SWC)
The Aerpro CHIZ6C allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls. Designed to suit Isuzu D-Max (2021-on), Isuzu MU-X (2021-on) & Mazda BT-50 (2020-on) vehicles (Models with factory touch screen only).

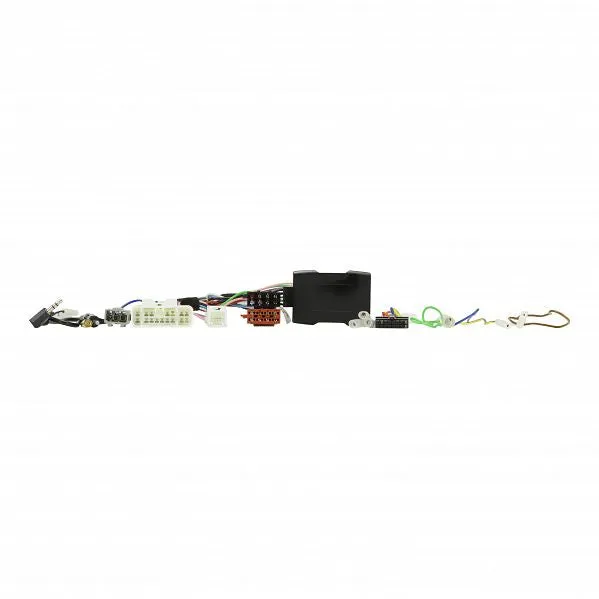

The steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease. This interface provides various outputs including speed pulse, park brake and reverse gear and comes supplied with a universal steering wheel control patch lead and antenna adaptor connections for FM/AM and DAB.

Important Information:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• DAB Antenna Retention is suitable for aftermarket head units that feature DAB with SMB antenna connection.
• This interface is not compatible with Aerpro Type C SWC Patch Leads. The universal patch lead included with this interface must be used.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth head units
• Includes universal steering wheel control patch lead
• Includes antenna adaptor connections for FM/AM and DAB
• Provides output feeds for speed pulse, park brake and reverse gear
• Fitted with a vehicle specific plug, no cutting of wires required

Specifications:

• Interface Type: Analogue
• Patch Lead Type: Universal Patch Lead Included
• Phone Button Compatibility: Yes
• Speech/Voice Button Support: Yes
• Outputs:
  • Reverse Trigger: Yes (Purple/White)
  • Park Brake: Yes (Green)
  • Speed Pulse: Yes (Pink)
• Other Retention: FM/AM & DAB Antenna Adaptor Connections Included
• Weight: 0.50kg

Vehicle Compatibility:

• Isuzu D-Max (2021)
• Isuzu MU-X (2021)
• Mazda BT-50 (2020)
