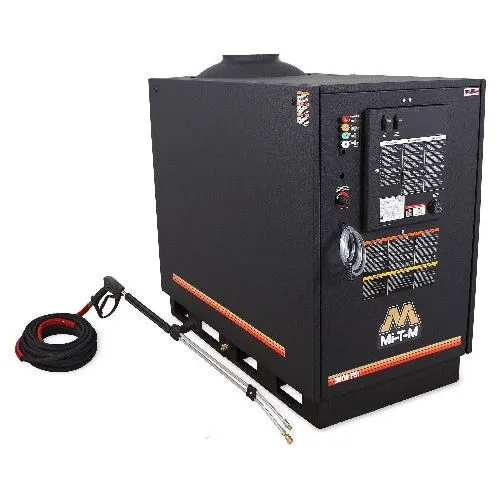

The stationary HG Series is available in either natural gas or propane making it an ideal choice for applications that need a steady fuel source. Offering maximum cleaning power, this hot water machine is perfect for wash bays.
Pump: Factory preset unloader · Thermal relief valve · Adjustable high pressure detergent injector
Motor: Open drip-proof motor electric motor with thermal overload protection
Frame: Powder coated steel side panels and frame
Components: Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24-volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with intermittent pilot
Miscellaneous: Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Limited Warranties:
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year General Pump
General triplex piston pump with ceramic plungers producing 3000 PSI @ 3.9 GPM Mi-T-M No. 3-0202
Horsepower/Motor 8.0 HP, 208V, 3Ø, 23.0A
Natural Gas BTU Per Hour 338,000
LP Gas BTU Per Hour 326,000
Draft Diverter 21 in. with 10-inch stack
Adjustable thermostat
Length 56.50 in. Width 29.00 in. Height 49.75 in. Weight 758 lb
